Hydraulic handbrake Type-9 TurboWorks NeoChrome

Designed for use for sports purposes. The brake is characterized by a very solid design has a collection for brake fluid.

Brake pump piston diameter: 0.75"

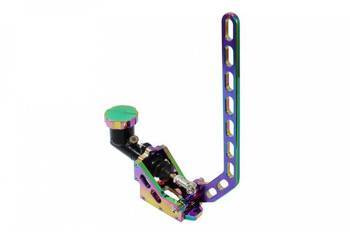

The set includes the elements shown in the pictures below:

• handle with fixing,
• brake pump.

The brake pump has connectors:

• inlet - AN4 - 7/16"
• outlet - AN3 - 3/8"

Rigid (copper/steel) or flexible fittings and sports brake hoses are available at our shop.

Installation on elestic wires does not require a specialized clamping machine for wires.

For high-performance braking systems, the standard is the size of an AN3 - it applies to both wires, where the diameters will be 3.2mm inside, and 7.5mm outside, as well as clamping fittings for such wires and threaded, with thread size 3/8 inches.

Thanks to the many connecting elements in our store, you can complete the finished assembly set in many different ways:

• Installation in the system, on serial wires.
• Mounting on flexible cables for serial clamps, connect them with a double banjo screw at the terminals.
• Installation as a separate system for the added clamps, with an expansion system on the pump.
• Mounting to serial clamps while unfastening the foot brake.
• and many others..
