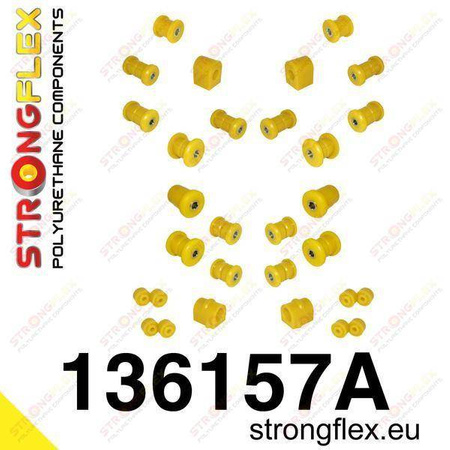

Full suspension polyurethane bush kit SPORT

KIT ID: 136157A

Name: Full suspension polyurethane bush kit SPORT

Fits:

• Opel Manta B 75-84
• Opel Ascona B 75-81

Include:

• 131126A x 4 Front Eye Bolt Mounting Bush SPORT
• 131134A x 2 Front Anti Roll Bar Bush 16-24mm SPORT

• 131601A x 2 Front lower wishbone front bush SPORT
• 131602A x 2 Front lower wishbone rear bush SPORT
• 131603A x 2 Front subframe rear mounting bush SPORT
• 131604A x 4 Front upper wishbone bush SPORT
• 131605A x 4 Rear centre prop mount & rear tie bar to axle bushes SPORT
• 131606A x 2 Rear tie bar to chassis bushes SPORT
• 131607A x 2 Rear anti roll bar bush SPORT

• 131608A x 1 Rear panhard rod mount 12mm SPORT
• 131608A x 1 Rear panhard rod mount 17mm SPORT

NOTE!
To install the polyurethane bushing 131604A, you must burn the old rubber bush. Do not remove the outer metal sleeve, it must be reused for this bushing!

NOTE!
Check anti roll bar diameter before placing order.

Pcs / KIT: 26

Diagrams:

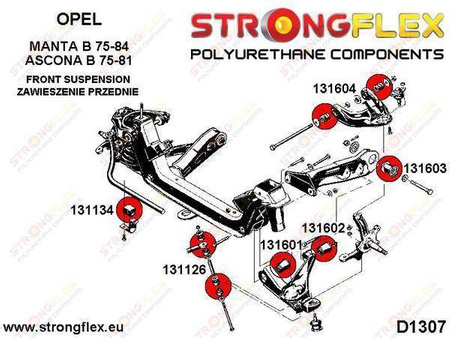

D1307-Opel-Manta-B-front-suspension-polyurethane-strongflex

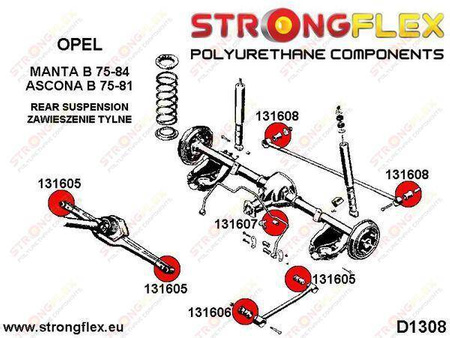

D1308-Opel-Manta-B-rear-suspension-polyurethane-strongflex

Hardness: 90ShA

Material: POLYURETHANE (PUR/PU)

To every product we add grease!
