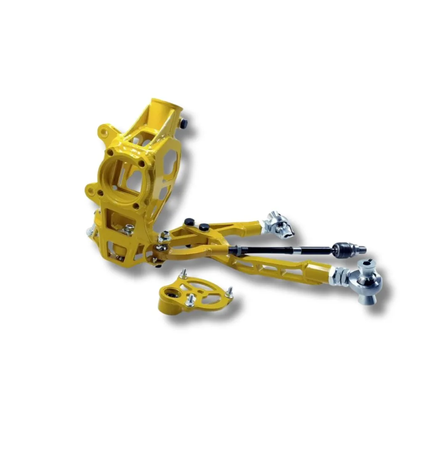

Angle kit BMW E9x/E8x V2 FAT

Steering angle kit for BMW E9x/E8x V2 66°

The kit is fully adjustable.

1- Adjustable Ackermann

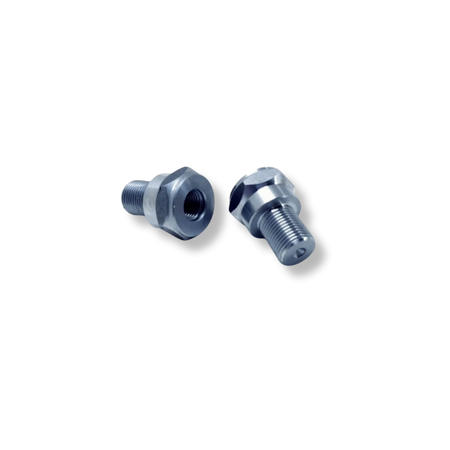

2- Adjustable steering angle limiters (eccentric bushings)

3- Adjustable camber

4- Adjustable caster

The kit includes:

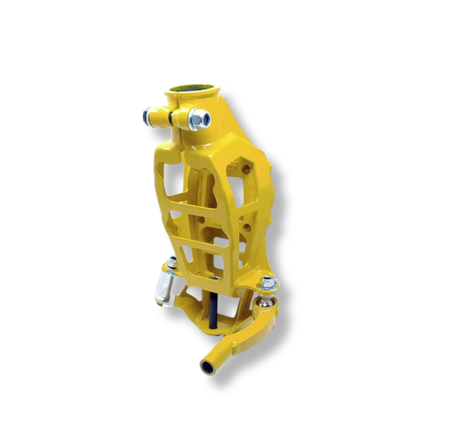

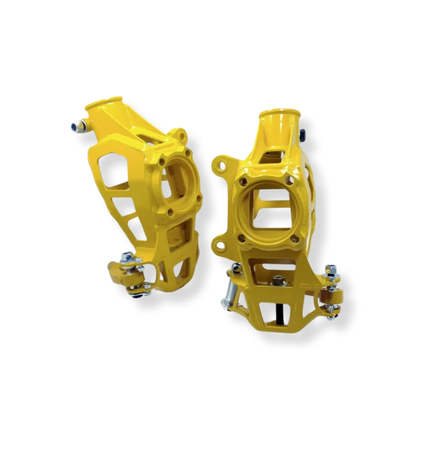

- 2 steering knuckles

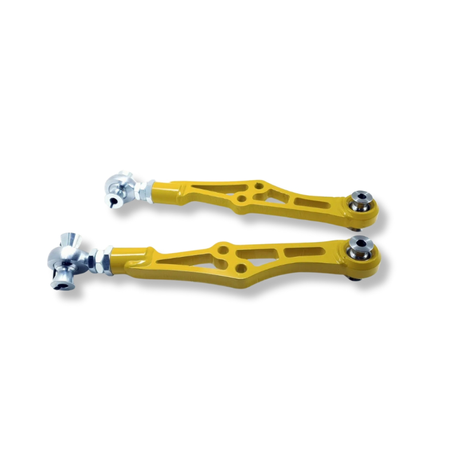

- 2 adjustable control arms
- 2 adjustable caster arms
- 2 upper mounting relocators

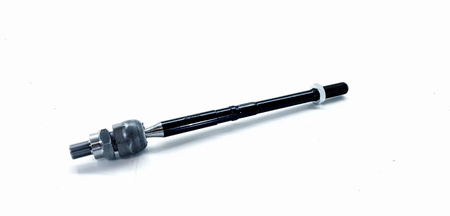

- 2 steering rods with rod ends

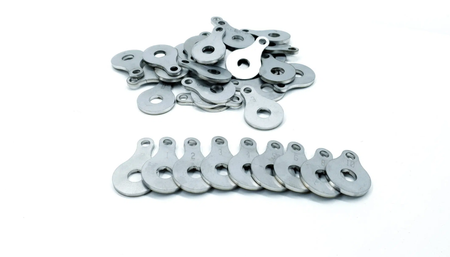

1x Ackermann kit (32 locking plates)
- 1 set of screws

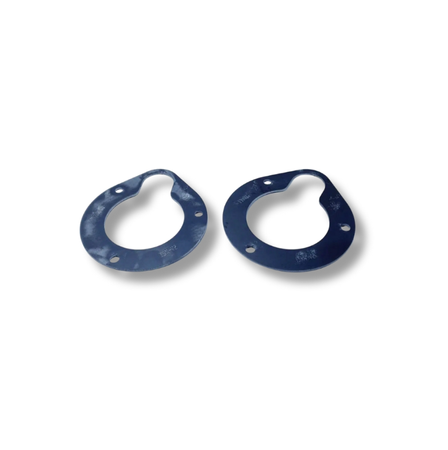

- 2 shock absorber cup reinforcement plates

The kit fits BMW E90, E91, E92, E93, E81, E82, E87, and E88. It does not fit M3 coilovers (62 mm diameter).
The diameter of the coilover mounting point in the steering knuckles is 52 mm.
V2 kits have a different geometry and are 8 kg lighter than V1 kits.
The kit weighs only 23 kg, yet is very durable.
Better control over the car and handling feel.
This version of the kit is more mechanic-friendly during competitions. All parts can be replaced more quickly.
All 4 lower arms are adjustable, making the setup of this kit very easy.
