Angle Kit Nissan S14 S15 V2 Wisefab
Wisefab Nissan S14/S15 Front V2 Drift Angle Lock Kit with Rack Relocation is an upgraded front steering kit featuring redesigned knuckles, new lower control arms, and rack relocation for improved Ackermann geometry and precise handling. Designed for S14/S15 with 5-lug spindles (S13 kit recommended for 4-lug), all components are available as spare parts.
Key Technical Features
Parameter | Description |
Model | Nissan S14/S15 Front V2 Drift Angle Lock Kit with Rack Relocation |
Application | Drift / track, front axle |
Chassis | Nissan S14, Nissan S15 (5-lug spindle) |
Knuckle | New design for long-stroke coilovers, increased suspension travel |
Lower Control Arm | New construction, fits S13/S14, easier adjustments |
Rack | Relocated for better Ackermann curve and steering feel |
Rack Offset Spacers | Not needed due to relocation – stiffer and more direct |
Serviceability | All parts available separately as spares |
Geometry and Handling
Aspect | Description |
Ackermann | Improved curve, more usable angle with better feel |
Suspension Travel | Increased via redesigned knuckle for long-stroke coilovers |
Handling | More precise and stiffer without offset spacers |
Use Case | Built for competitive drifting, track advantage |

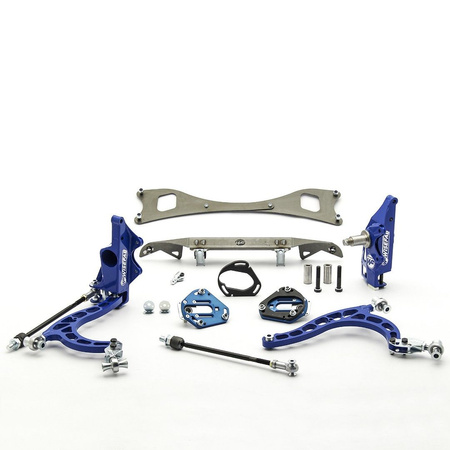

Kit Contents
Component | Description |

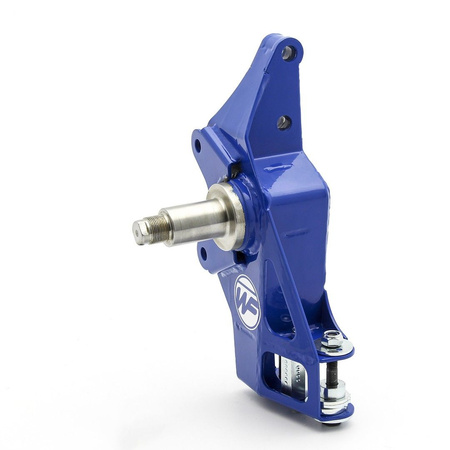

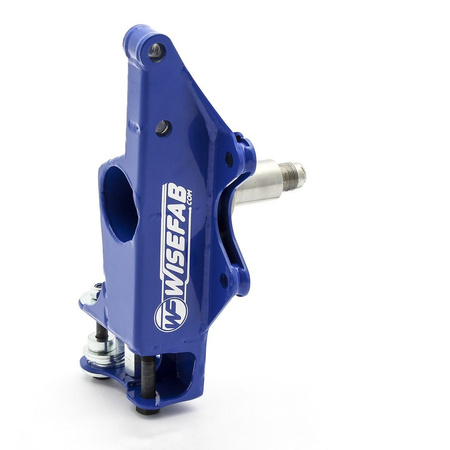

Front Knuckles | V2 version, adapted for greater suspension travel |

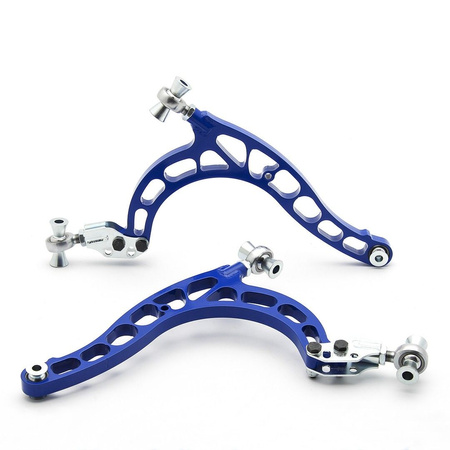

Lower Control Arms | New design, compatible with S13/S14, easier adjustment |

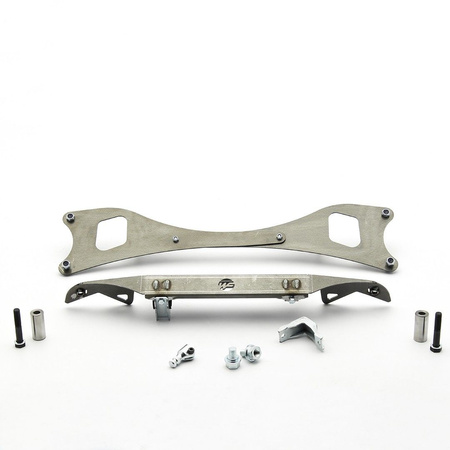

Rack Relocation Kit | Parts to reposition rack optimally |
Other Components | Full front kit parts available as spares |
Recommended Alignment Settings
Parameter | Value / Recommendation |
Toe | 0 or negative Ackermann: 2 mm toe out; Positive Ackermann: 0 mm |
Camber | -4° ±0.5° |
Caster | 3.5° ±0.5° |
