Angle Kit BMW E92 FAT
Wisefab BMW e9x lock kit can be fitted on a variety of BMW models. E90, E91, E92, E81, E82, E87, E88 M and nonM. Brackets included to fit M brake caliper. Either M or nonM front coilovers would work with Wisefab E90 knuckle. All the metal components on Wisefab E90 front suspension are from high strenght steel, including sheetmetal components, tubes, tube ends and rod end housings. Rod ends and spherical bearings are used, no rubber bushings.
Wisefab Front Drift Angle Lock Kit for BMW E90/E92/E81/E82 delivers 65° of lock with parallel steering, perfect for pro-level drift builds.
Technical Specifications
Feature | Description |
Steering Angle | 65° with parallel steering |
Ackermann | Adjustable on-track (+/-) in minutes, kit included |
Lock Stopper | Adjustable |
Lower Control Arms | One-piece design for stiffness at high angles |
Roll Center | Higher via dropped joints, eliminates sway bar need |
Camber & Bump Steer | Excellent dynamic control, minimal across full range |
Steering Jacking | Controlled, no handling issues |
Self-Alignment | Consistent torque, no full-lock binding |
ABS Sensor | Original wheel speed sensor compatible |

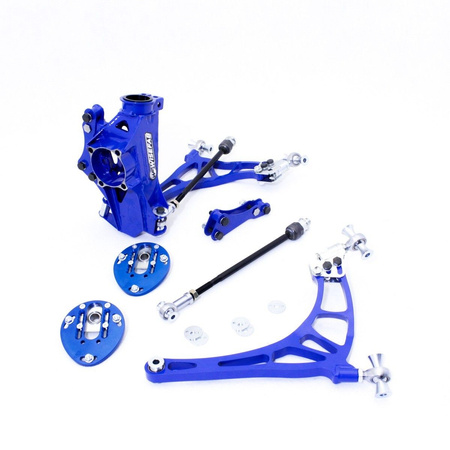

Kit Contents
Component | Details |

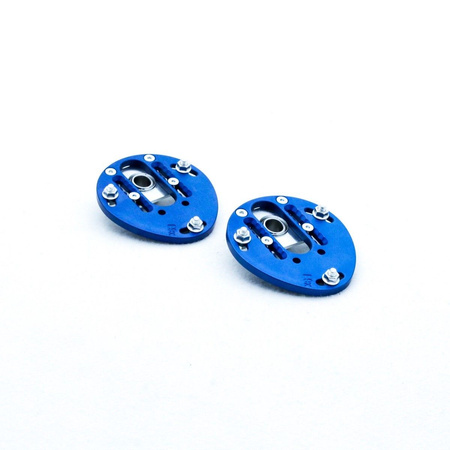

Coilover Upper Mounts | Adjustable, Formula Drift compliant |

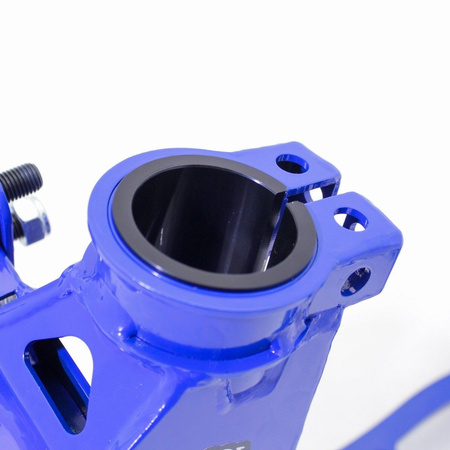

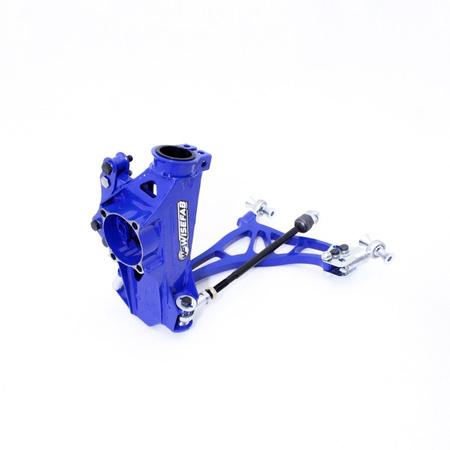

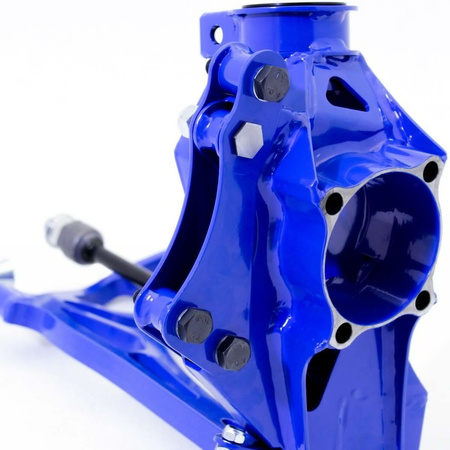

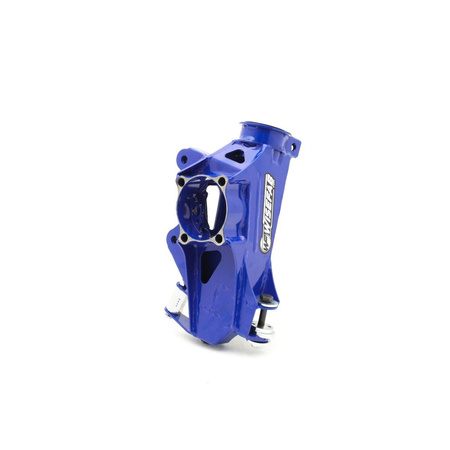

Knuckles | With hardware |

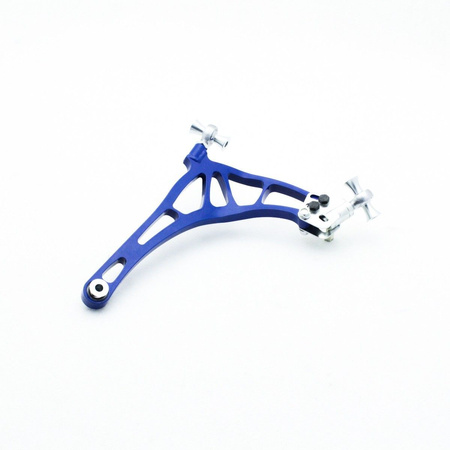

Lower Control Arms | Complete set |
Tie Rods | Pre-assembled |
Brake Adapters | For M brakes |
Coilover Sleeve | 45mm |
Installation Guide | Included |
Installation Requirements
Parameter | Recommendations |
Ride Height | ~80mm from subframe to ground |
Max Tire Ø | 635mm (e.g., 225/45R17, 235/40R17, 225/40R18) |
Wheels Min | 17", ~135mm backspace (ET20-45) |
Fenders | Wide/flares per ET; no inner mods needed |
Suspension | Coilovers required |
