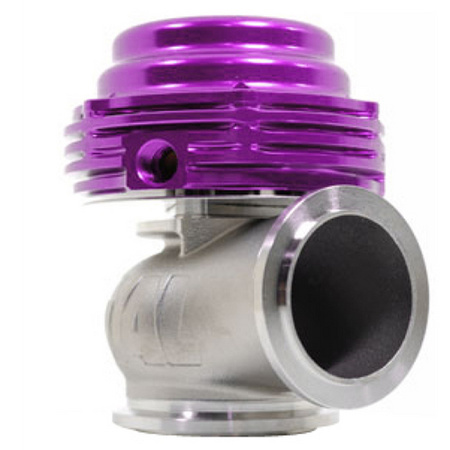

TiAL Sport MVS-A Wastegate (All Springs) w/Clamps - Purple
TiAL TIA-002958 – MV-SA 38mm Wastegate (Purple)
TiAL TIA-002958 MV-SA is a next-generation 38mm external wastegate, engineered for the most demanding motorsport applications and advanced turbo builds where there is no need or option to connect water cooling ports.
Key Features
38mm valve, patented V-band design – allows for a compact fit and optimal exhaust flow even in tight engine bays.
347SS stainless steel housing and a high-temp hybrid alloy valve – withstand extreme thermal loads and prolong service life.
Purple anodized billet aluminum actuator, reinforced Nomex silicone diaphragm, and 17-7 PH precision actuator spring ensure stable performance up to 900°F (483°C).
Three lower and two upper (M10x1.0) air signal ports – flexible plumbing and boost control options, with no need to rotate the cap.
Five heat-dissipating fins insulate the actuator top from the wastegate body – maximize membrane life and boost reliability without water-cooling.
Pressure range: 0.3–1.7 bar (all springs included) – wide tuning options out of the box.
Complete kit: wastegate, V-band inlet/outlet clamps and flanges, pneumatic fittings, plugs for unused ports, full spring set.
Available colors: purple, black, blue, silver, red.
Technical Specification
| Parameter | Value |
|---|---|
| Valve size | 38mm |
| Housing material | 347SS stainless steel |
| Actuator | anodized aluminum (purple) |
| Pressure range | 0.3–1.7 bar (all springs included) |
| Mounting | V-band (inlet 1.75” / outlet 1.50”) |
| Air ports | 3 lower, 2 upper (M10x1.0) |
| Water cooling | No water cooling (MV-SA design) |
