Ecumaster Display ADU-7" Rev. 2

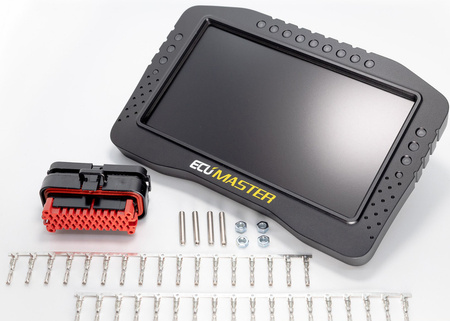

ECUMASTER ADU 7" Rev. 2 Multifunction Display
was created after consultations with rally drivers and engineers in order to ensure the highest product quality and allow convenient and easy use of the device. ADU transmits and displays information, allowing to maintain the greatest possible control over the vehicle.
HIGH FUNCTIONALITY

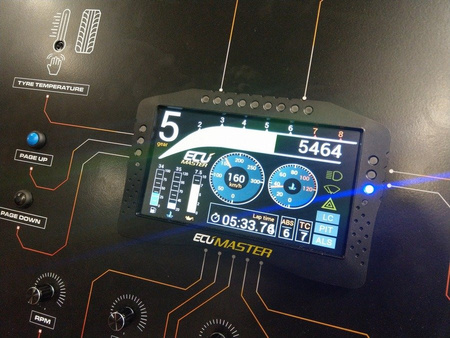

ECU Master ADU 7" features a high-resolution screen with a very clear anti-reflective coating, ensuring excellent visibility in all conditions. It has several pre-configured pages, which can be freely customized. Pages can be switched manually or automatically. Each element of the page can be modified using a Windows-based system, and overlays facilitate displaying multiple pages with any chosen data, such as best lap or low oil pressure warning.
Reliability!
ADU is also equipped with 15 very bright RGB LEDs, which can be used as gear-dependent backlighting and can be modified according to user preferences (alarms, low fuel level, etc.). With infrared beacons or GPS, the display becomes a powerful lap timer with predictive timing functionality. By selecting the qualification page, you enable "Qualification Mode," which uses advanced lap time calculation based on the automatically updated "best" reference lap. User-configurable timers can be adjusted for additional functionality (pit stop, etc.). ADU also supports thermal cameras for monitoring brake discs or tire temperatures (up to 16 points per tire).
SPECIFICATION:
MAIN
Operating temperature range
-40 to 85°C
Processor
32-bit, automotive, 90 MIPS
Reverse polarity protection
Yes, internal
Operating voltage range
6–22V, surge resistance compliant with ISO 7637
Housing
Anodized aluminum, CNC machining
Water resistance
IP60
Connector
1 x 35 AMP automotive
PC communication
CAN using Peak, Kvaser, or Ecumaster interface
Display type
TFT 800x600
Display brightness
5" – 600 cd/m², 7" – 1000 cd/m²
COMMUNICATION
USB
For logging to external USB memory
CAN interface
2 x CAN2.0 A/B, 250, 500, 1000 Kbps
Serial link
RS232 Rx/Tx, AiM, Ecumaster, Hondata Kpro protocols
- CAN streams
User-defined
