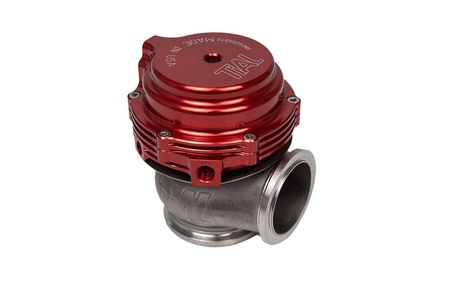

TiAL Sport MVR Wastegate 44mm (All Springs) w/Clamps - Red
TiAL Sport MV-R 44 mm Wastegate – model TLS002951 (Red)
The TiAL MV-R is a compact 44mm external wastegate engineered for precise boost management in turbocharged applications. The TLS002951 version comes in red anodized finish and includes all springs and V-Band installation accessories—ideal for street, track, and motorsport builds.
Key Features
Durable 347 stainless steel body and high-temp NiCrFe alloy valve head for longevity under extreme exhaust gas temperatures.
Supplied with V-Band clamps and flanges for fast and secure installation without gaskets.
Full spring package offers wide-ranging base pressure adjustments without removing the wastegate from the manifold.
Compact MV-R design fits easily into tight engine bays, providing consistent boost control.
Water-cooling ports included (plugged) for high-heat endurance applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Valve Diameter | 44 mm |
| Valve Head Material | High-temp NiCrFe alloy |
| Body Material | CNC-machined 347 stainless steel |
| Mount Type | V-Band (inlet & outlet) |
| Air Ports | 3 bottom / 2 top (M10x1.0 threads) |
| Water Ports | 2 x -4AN (M8x1.0, plugged) |
| Spring Range | Complete set (~0.2 to ~1.5 bar base pressure) |
| Color | Red anodized |
| Manufacturer Code | TLS002951 |
Package Contents
TiAL MV-R 44mm Wastegate – Red
Full set of 7 springs for various base pressure setups
V-Band flange and clamp (inlet)
V-Band flange and clamp (outlet)
Plugs and fittings for vacuum and water connections
O-rings and mounting hardware
