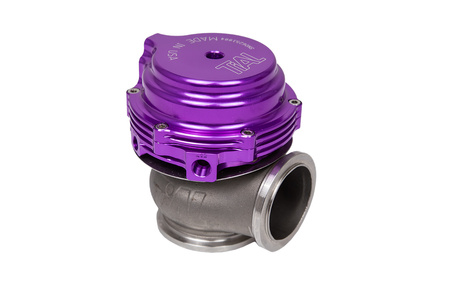

TiAL Sport MVR Wastegate 44mm (All Springs) w/Clamps - Purple
TiAL Sport MV-R 44 mm Wastegate – model TLS002950 (Purple)
The TiAL MV-R external wastegate, 44 mm, is engineered for precise boost control in aggressive turbocharged setups. The TLS002950 model features a purple anodized finish and comes complete with a full spring kit and V-Band mounting accessories for quick installation.
Key Features
Valve head made of high-temp NiCrFe alloy and stainless steel 347 body ensure durability under extreme EGT.
Includes V-Band clamps and flanges for fast and leak-proof installation.
Full set of 7 springs allows fine-tuning of base boost pressure without removing the wastegate.
Ultra-compact MV-R design fits in tight engine bays while delivering smooth, consistent boost control.
Water-cooling ports supplied (plugged) for applications requiring high-temperature thermal management.
Technical Specifications
| Parameter | Value |
|---|---|
| Valve Diameter | 44 mm |
| Valve Head Material | High-temp NiCrFe alloy |
| Body Material | CNC-machined 347 stainless steel |
| Mount Type | V-Band (inlet & outlet) |
| Air Ports | 3 bottom / 2 top (M10x1.0 threads) |
| Water Ports | 2 x -4AN (M8x1.0, plugged) |
| Spring Range | Complete set (~0.2 to ~1.5 bar base pressure) |
| Color | Purple anodized |
| Manufacturer Code | TLS002950 |
Package Contents
TiAL MV-R 44mm Wastegate – Purple
Complete set of 7 springs for base pressure adjustment
V-Band flange and clamp (inlet)
V-Band flange and clamp (outlet)
Vacuum and water fittings with plugs
O-rings and mounting screws
