Multifunctional smart OBD Screen

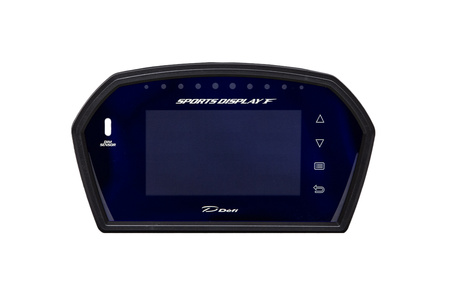

The Defi display is a 5-inch color LCD touchscreen. Four different interfaces are available by default, which can be switched between. In addition, different interfaces can combine different functions, and one interface can display up to 9 different functions simultaneously.

The instrument display functions include: voltage, water temperature, oil temperature, oil pressure, speed, turbine, vehicle speed, pressure difference, throttle opening, and gear position. G-force value, driving history. The firmware can be updated later via USB. There are multiple connection methods available, you can connect to the control unit, you can also connect only to the OBDII socket, or you can connect only to the power cable (a GPS sensor is required for use).

Features:

1. A 4.2-inch color TFT display with touch panel enhances usability and readability.

2. Low-reflection glass cuts off reflection to the panel surface.

3. Accurate location information can be obtained, and time can be measured using a high-performance 10 Hz GNSS antenna.

4. With a USB flash drive, driving data can be recorded continuously (up to 9 hours, 59 minutes, and 59 seconds per file).

5. It is equipped with an automatic dimming control system.

6. The display pattern can be selected from three patterns.

7. Detection data can be sent to DSDF from the ADVANCE system.

8. ISO CAN signals from the vehicle's OBD connector can be displayed.

9. The sequential indicator consists of 1Ored LED tachometer warning lights.

10. The side indicator lights up in different colors for each mode and condition.

11. A separate switch that can be easily pushed with your fingers in racing gloves is included in the package.

12. Latest software
