TiAL Sport MVS Wastegate (All Springs) w/Clamps - Black

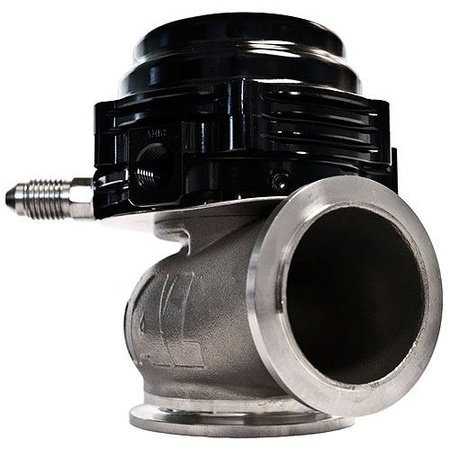

TiAL Sport MVS 38 mm Wastegate Black
The TiAL MVS is a compact 38‑millimeter external wastegate designed for precise boost pressure control in turbocharged engines. The Black version (black anodized aluminum housing) comes with a complete set of springs and V‑Band clamps – ready for installation in street, track‑day, and motorsport builds.
Key Features
316 SS body and housing, with a valve made from high‑temperature‑resistant NiCrFe alloy – ensuring long life even under extreme EGT conditions.
V‑Band clamps and flanges included – for quick installation and a secure, gasket‑free seal.
Complete spring package allows wide base pressure adjustment; spring changes can be made without removing the wastegate from the manifold.
Compact MV‑S design makes installation easy in tight engine bays, while maintaining smooth boost control over the full operating range.
Water‑cooling ports (plugs included) – enables coolant connection for applications exposed to continuous high temperatures.
Technical Specifications
| Parameter | Value |
|---|---|
| Valve diameter | 38 mm |
| Valve material | NiCrFe alloy, high‑temperature resistant |
| Housing material | 316L/347 SS, CNC‑machined |
| Mounting type | V‑Band (inlet & outlet) |
| Water ports | 1/8″ NPT (plugs supplied) |
| Spring range | 0.3–1.7 bar (full spring kit) |
| Color | Black anodized |
Kit Contents
TiAL MVS 38 mm Wastegate – Black
Complete set of 8 springs for various base pressure setups
V‑Band flange and clamp (inlet)
V‑Band flange and clamp (outlet)
Plugs and fittings for vacuum / water connections
O‑rings and mounting hardware
