TiAL Sport MVS Wastegate (All Springs) w/Clamps - Blue

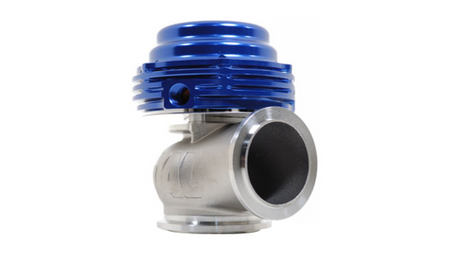

TiAL Sport MVS 38 mm External Wastegate – P/N TLS002952 (Blue)
The TiAL MVS 38 mm wastegate offers precise boost control in compact form, making it a favorite for street, track-day, and full-blown motorsport builds. The TLS002952 kit arrives anodized blue and includes every spring and V-band fitting you need for a true plug-and-play installation.
Key Features
-
316 SS housing & NiCrFe valve for exceptional heat resistance—no sticking under extreme EGT.
-
Full spring pack lets you set base boost from ~0.3 bar to ~1.7 bar without removing the gate from the manifold.
-
Dual V-band clamps & flanges (inlet and outlet) provide a leak-free seal and quick serviceability.
-
Ultra-compact body simplifies packaging in tight engine bays while maintaining smooth, stable boost control.
-
Integrated water-cooling ports (1/8″ NPT, supplied blocked) for additional thermal management during endurance use.
Technical Specifications
| Parameter | Value |
|---|---|
| Valve diameter | 38 mm |
| Valve material | NiCrFe super-alloy |
| Housing material | CNC-machined 316/347 stainless steel |
| Mounting style | V-band (inlet & outlet) |
| Water ports | 1/8″ NPT (plugs included) |
| Spring range | Full set ~0.3 – 1.7 bar |
| Colour | Blue anodized |
| Manufacturer code | TLS002952 |
What’s Included
-
TiAL MVS 38 mm wastegate – Blue
-
8 interchangeable springs (multiple base-pressure combos)
-
V-band flange & clamp – inlet
-
V-band flange & clamp – outlet
-
Vacuum / water fittings, plugs & O-rings
-
Fastener kit
