Wilwood Adjustable Dual Pedal - Brake / Clutch - Rev. Swing Mount - 5.1:1

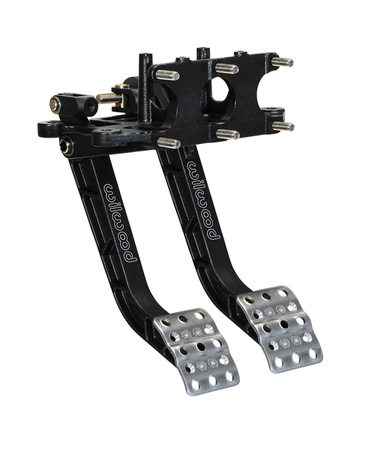

Wilwood Reverse-Mount Pedal Box – swing-mount brake & clutch assembly

The Wilwood Reverse-Mount set combines brake and clutch pedals in one compact frame, with the master cylinders mounted behind the firewall. This layout frees space in the engine bay and shifts mass toward the cabin for better weight distribution.

Key features

• lightweight 6061-T6 aluminum frame delivers high stiffness with minimal weight

• reinforced I-Beam pedal arms with a 5.1 : 1 ratio provide linear feel and a shorter stroke

• anti-slip “waffle” pads offer lateral adjustment to match the driver’s foot position

• balance bar with a detent every full turn lets you fine-tune front/rear bias and locks the setting in place

• push-rod pin-and-fork mounting allows full freedom of movement even with angular misalignment

• two tuning options: included lock nut for street and endurance use, or an optional remote adjuster for quick cockpit tweaks

• compatible with all Wilwood vertical-mount single master cylinders (5/8″–1″, ordered separately)

Typical applications

• drift, time-attack and rallycross cars where a clean engine bay and quick bias changes matter

• turbo “top-mount” or ITB builds needing the master cylinders removed from the bay

• lightweight prototypes, buggies and race cars where every gram counts
