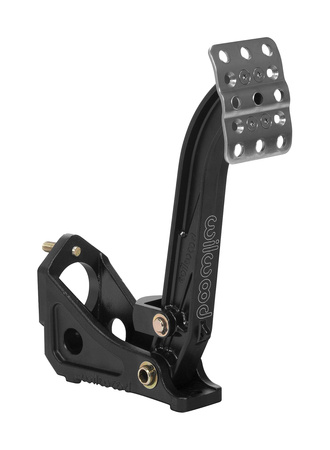

Wilwood Floor-Mount Pedal – floor-mounted brake / clutch assembly
The Wilwood Floor-Mount Pedal lets you place a single master cylinder (brake or clutch) on the engine-bay side of the firewall, freeing interior space for the driver’s feet and roll-cage bars. A lightweight aluminum frame and reinforced I-Beam pedal arm keep the assembly both rigid and feather-light, while the 6 : 1 ratio delivers a firm, linear pedal feel.
Key features
-
CNC-machined 6061-T6 aluminum frame for high stiffness and low mass
-
Reinforced I-Beam pedal arm with a 6 : 1 ratio for precise modulation
-
Anti-slip “waffle” pad with lateral adjustment to match the driver’s foot position
-
Compatible with all Wilwood vertical-flange master cylinders (single or dual outlet)
-
Horizontal-flange masters can be fitted with an optional adapter
-
Compact footprint simplifies installation in space-constrained race shells
Typical applications
-
Drift, rally, and time-attack cars that require the master cylinder outside the cabin
-
Builds with flat floors or tight tunnels where rear-mount brackets won’t fit
-
Lightweight buggies, prototypes, and off-road racers needing a compact pedal setup
