Radium Engineering 8AN Dry Break 27mm Fitting Outer

Radium Engineering 14-0302 – 8AN Dry Break 27 mm (Outer)

Key Features

• Dry-break quick-disconnect separates fuel or oil lines with virtually zero spill or pressure loss, streamlining pit-stop service.

• Bayonet-style locking mechanism allows secure engagement and one-handed release even in tight engine bays.

• Hard-anodized aluminum body offers light weight, corrosion resistance and full compatibility with gasoline, E85 and common oils.

• High-flow -8 AN flare connection maintains line diameter for systems using 450 l/h+ pumps.

• Supplied Viton® O-ring ensures leak-free sealing at elevated temperatures and pressures.

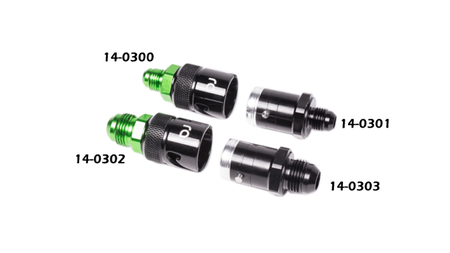

• 27 mm coupling diameter mates with matching “inner” halves 14-0301 or 14-0303 (sold separately) to form a complete, drip-free connector.

Typical Applications

• Feed or return lines in high-performance EFI fuel systems.

• Quick removal of surge tanks, filters or dry-break fillers during trackside service.

• ‑8 AN oil cooler or catch-can plumbing where zero-spill disconnection is required.

Kit Contents

• 14-0302 8AN Dry Break (Outer).

• Viton® sealing O-ring.

• Torque specification sheet (downloadable from the manufacturer).
