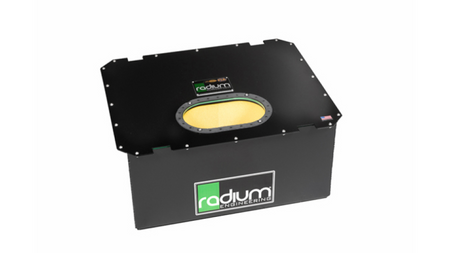

Radium Engineering R22A Radium Fuel Cell - 84L

Radium Engineering 20-0622 Fuel Tank - 22 gal (≈ 83 l)
A certified, large-capacity rectangular RA-Series R22A tank for demanding motorsport applications. It meets FIA FT-3 1999 and SFI 28.3 standards, and thanks to its polymer bladder is resistant to all types of fuels, including E85 and methanol.

Key features

• Aluminum 5052 housing, powder coated - low weight and high corrosion and impact resistance.
• Includes anti-sloshing foam to reduce fuel rippling during overloads.
• Threaded aluminum ring for quick installation of FCST pump modules (standard 6 × 10″, 24 screws).
• Integral FKM/Viton® gaskets ensure tightness with high alcohol fuels.
• Serial number and set of certificates - valid for 5 years from the date of manufacture.

External dimensions

• Length: 912mm
• Width: 450mm
• Height: 381mm

Application

Endurance, rally-raid, off-road, drifting, time-attack - anywhere you need a large fuel reserve and safety.
Ideal for E85 conversions and vehicles with fuel-intensive engines (V8, turbo-I6).
Facilitates lowering the center of gravity and transferring weight to the rear of the chassis.

Kit contents

• Fuelcell R22A (cert. FIA/SFI) with anti-sloshing foam.
• Aluminum housing with inspection cover.
• Mounting ring, 2× FKM 6 × 10″ gasket, stainless steel screw set.
• Certificate of conformity and serial number.
