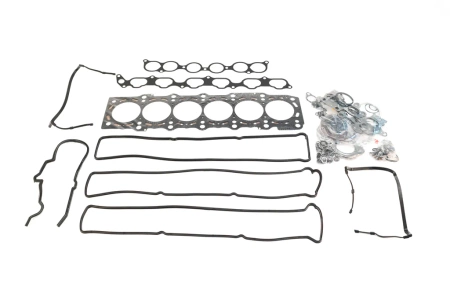

Gasket KIT Toyota 2JZ OEM 04111-46056

Engine overhaul - Gasket Kit "top and bottom kit" for Toyota Supra and Toyota Aristo

1993-2002  |  TOYOTA SUPRA JZA80
1997-2004  |  TOYOTA ARISTO JZS16

This OEM 2JZGTE Gasket Kit:
This kit includes valve cover Gaskets for both vvti and NON vvti
(this kit does not include all specific vvti engine gadgets, like vvti solenoid O ring and a few other things)

This OEM kit includes the following items:
11115-46052 x 1 - Multi-Layer Steel (MLS) Head Gasket

11213-46020 x 1 - Valve Cover Gasket (Intake non-vvti)
11213-46030 x 1 - Valve Cover Gasket (Intake vvti)
11214-46011 x 1 - Valve Cover Gasket (Exhaust)
90210-07001 x 16 - Valve Cover Washers / Grommets
90913-02090 x 12 - Valve Stem Seals (Intake)
90913-02088 x 12 - Valve Stem Seals (Exhaust)

23291-75010 x 12 - Injector Vibration Insulator
90301-14006 x 6 - Injector O-Ring #1
90301-17007 x 6 - Injector O-Ring #2

90210-08033 x 4 - Washer to Front Bearing Caps
90430-12028 x 1 - Oil Drain Plug Gasket
90311-40020 x 2 - Cam Seals
90311-90006 x 1 - Rear Main Seal
90311-46001 x 1 - Front Crank Seal
11329-46011 x 1 - Timing Cover Gasket
96721-24022 x 1 - O-Ring for Oil Pump #1
96721-24031 x 1 - O-Ring for Oil Pump #2
15147-46010 x 1 - Oil Strainer Gasket
90430-20016 x 1 - Washer for Oil Filter Bracket Bolt
15472-46010 x 1 - Turbo Oil Outlet Gasket
90430-12026 x 1 - Turbo Oil Pipe Union Bolt Gasket
96721-19010 x 1 - O-Ring for Dipstick Tube

96761-24040 x 1 - O-Ring for Back of Water Pump
96761-24023 x 2 - O-Ring for Short Water By-Pass Pipe
16343-46030 x 1 - Water Outlet Housing Gasket
16325-46010 x 1 - Water Inlet Housing Gasket
16325-62010 x 1 - Thermostat Gasket

17173-46040 x 1 - Exhaust Gasket #1
17198-46010 x 1 - Exhaust Gasket #2

17177-46031 x 1 - Intake Manifold Gasket
17176-46030 x 1 - Surge Tank Gasket

90430-12026 x 1 - Fuel Damper Gasket Pipe Side
90430-14008 x 1 - Fuel Damper Gasket Damper Side
