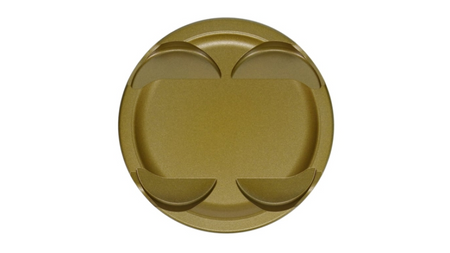

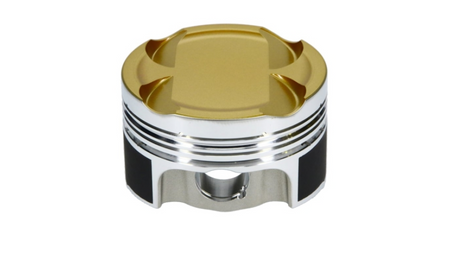

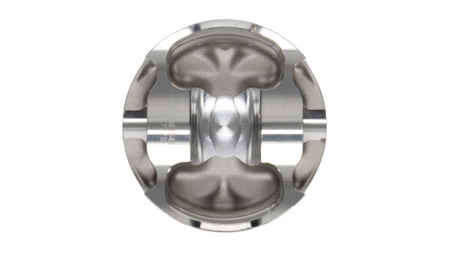

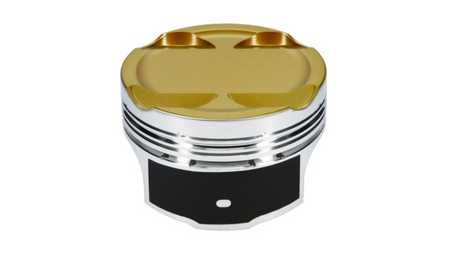

JE-Pistons Kit Toy 2JZ-GE/GTE (9.0:1) 86.00mm Ultra Series
JE Pistons Ultra Series 361341 – forged piston kit Toyota 2JZ-GTE / 2JZ-GE
The JE 361341 set represents the top tier of JE’s Ultra Series—pistons engineered for extreme boost pressure and sky-high RPM in the legendary 2JZ platform. Forged from 2618-T6 aluminium using Aligned Grain Flow technology and protected by advanced thermal and low-friction coatings, they deliver bullet-proof reliability at power levels far beyond stock limits.
Key benefits
-
Aligned Grain Flow forging guides material fibres to follow the piston’s load paths, maximising fatigue strength under high boost.
-
Ceramic-thermal crown coating reflects heat back into the combustion chamber, lowering piston temperatures and improving scavenging.
-
Graphite skirt coating reduces friction, cold-start noise and cylinder-wall wear.
-
Lateral gas ports on the top ring land maintain ring seal at high RPM and boost.
-
Trend Performance wrist pins Ø 22 mm, thick-wall, ready for nitrous and big-boost abuse.
-
Matched ring pack included—profiles and tensions tailored for turbo, ethanol and high-output builds.
Typical applications
-
Drag, top-speed and pro-drift engines exceeding 1 000 hp
-
2JZ-GTE street/strip builds using large single or twin turbos
-
Turbo-converted 2JZ-GE swaps replacing fragile OEM cast pistons
Technical specifications
| Parameter | Value |
|---|---|
| Bore diameter | 86.00 mm / 3.386″ |
| Compression ratio* | 9.0 : 1 (-9.8 cc dish) |
| Compression height | 34.0 mm / 1.338″ |
| Material | Forged 2618-T6 aluminium |
| Piston weight (bare) | ≈ 354 g |
| Wrist-pin size | 22 mm × 62 mm, thick-wall |
| Ring grooves | 1.0 / 1.2 / 2.8 mm (top / 2nd / oil) |
| Quantity per kit | 6 pistons |
| Compatible rods | 142 mm length, full-floating pin |
* With OEM 86 mm stroke and 2JZ-GTE combustion chamber.
Kit contents
-
6 × JE Ultra Series pistons 361341
-
6 × Trend Ø 22 mm wrist pins + locks
-
Complete ring set 1.0 / 1.2 / 2.8 mm
-
Installation guide with clearance and torque data
Installation notes
-
Maintain minimum 0.10 mm piston-to-wall clearance for street use; increase per JE chart for race/boosted setups.
-
Verify valve-to-piston clearances on lifts ≥ 11 mm; machine pockets if required.
-
Gap rings to match target boost (≈ 0.0055″ × bore for high-performance street, 0.0065–0.0070″ for > 30 psi).
-
Run high-zinc 5W-40 / 15W-50 oil and shorten change intervals on 800 hp+ engines.
Choose JE 361341—pistons built to take whatever horsepower you dare to unleash.
