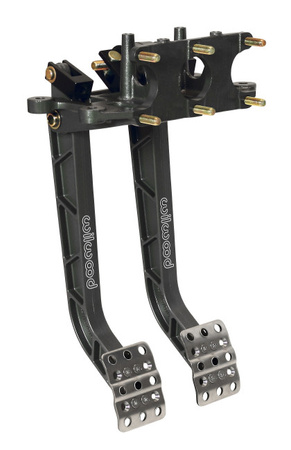

Wilwood 340-11299 – Reverse Swing Mount Brake & Clutch Pedal Box

Product Overview

Wilwood 340-11299 is a compact dual-pedal assembly (brake + clutch) with an integrated balance bar designed for overhead mounting on the cockpit side of the firewall. A lightweight I-Beam aluminum frame and forged pedal arms deliver high stiffness with minimal mass. Non-slip waffle-face pads can be laterally adjusted to suit driver preference. The balance bar features a detent every full turn and a jam nut; a remote bias adjuster may be fitted for on-the-fly changes.

Key Features

• 6.25 : 1 pedal ratio for both brake and clutch—ideal balance of modulation and clamping force.

• Reverse master cylinder mounting keeps all three cylinders (2 × brake, 1 × clutch) inside the cabin, freeing engine-bay space and protecting them from exhaust heat.

• Pin-and-clevis pushrod joints allow a broad operating angle with zero bind.

• Detented balance bar locks settings securely under racing conditions; compatible with a remote adjuster.

• Works with Wilwood vertical single-outlet master cylinders (ordered separately).
