Forged conncting rods Datsun 280Z L28 Maxpeedingrods

Application

• Compatible for Nissan Patrol compatible for Datsun 280Z 280ZX Turbo L28

Specification

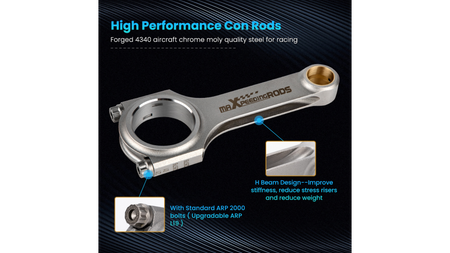

• Performance Con Rods
• Type: Forged 4340 aircraft chrome moly quality steel for racing

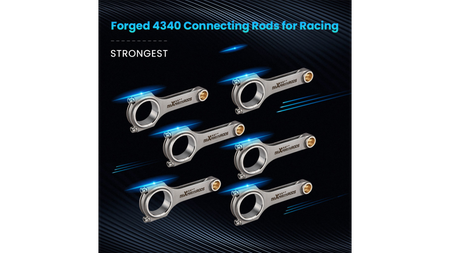

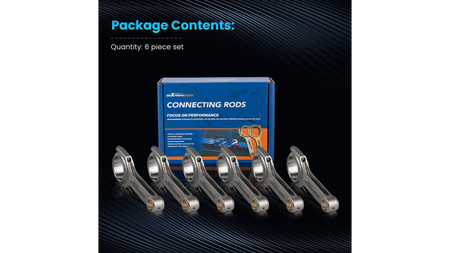

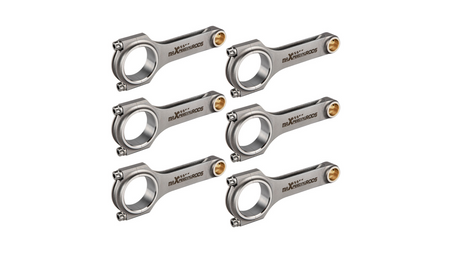

• H-beam Conrods Quantity: 6 Pieces as showing in picture
• Bolts: Including ARP 2000 bolts
• Note: Extra cost for upgrading to ARP L19 bolts
• Bolts Size: ARP 2000 3/8" bolts
• Tolerance: Balanced to +/- 1 gram in set
• Piston Bolt Hole: +-4/1000mm

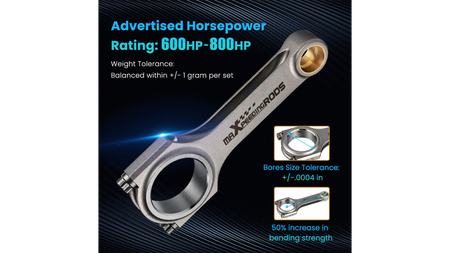

• Power: 600~800HP
• Strength of the fastening (PSI): 200,000 - 230,000 psi Torque: 48ft ≈ 65 NM
• Top acceleration: 7000-9000 rpm

Dimensions

• Center to center length: 130.2mm
• Big end diameter: 53mm
• Small end diameter: 21mm
• Big end width: 26.8mm
• Small end width: 23.85mm

Feature

- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
- Designed and processed by CNC machine.
- All big and small ends are finished with SUNNEN honing machine

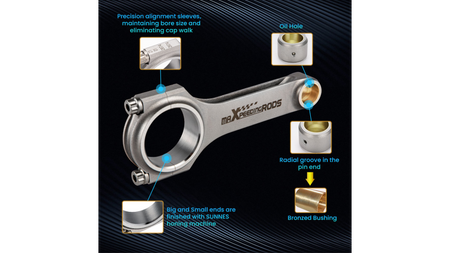

- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk

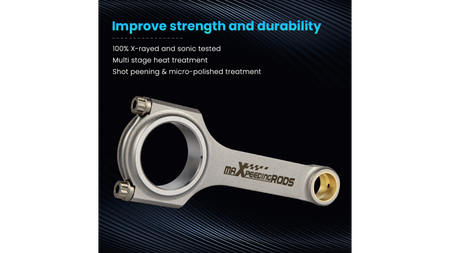

- 100% X-rayed, sonic tested and magnafluxed
- Multi-stage heat treated
- Shot peened to relieve stress
- Come with the bronzed bushing suitable for the floating piston pin

Note

Professional installation is highly recommended (No Instruction Included)
