Control arms BMW E36 E46 Rear Adjustable

With CNC71 Motorsport's adjustable control arms for the BMW E36/E46, we can adjust the rear suspension to best suit the driver's driving style. This is especially useful when preparing the car for motorsport - drifting as well as time attacku. A set of adjustable lower control arms also ideal for lowering the car to ensure proper fitment.

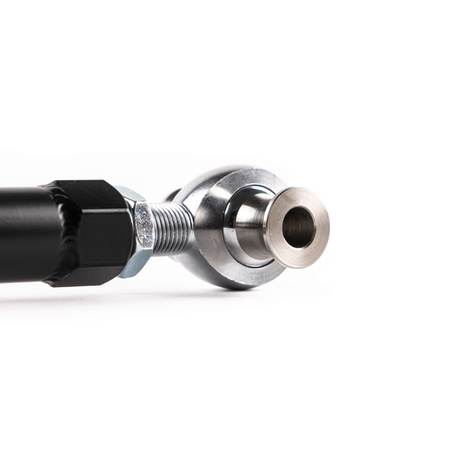

The control arm design based on a ball joint provides greater rigidity of the rear suspension system, making the vehicle more predictable and providing improved handling characteristics. In addition, the uniball is a much more durable solution than the original rubber bushing, which is particularly important in the case of increased suspension load in sports.

Through a range of adjustment in "+" as well as in "-", CNC71 Motorsport control arms for BMW E36/E46 allow the vehicle to achieve maximum traction on the drive axle. The total adjustment range is about 40 mm (544 mm - 585 mm) , of which, compared to the original control arm (553 mm - 560 mm), we get the possibility of shortening by 10 mm or lengthening by 30 mm.

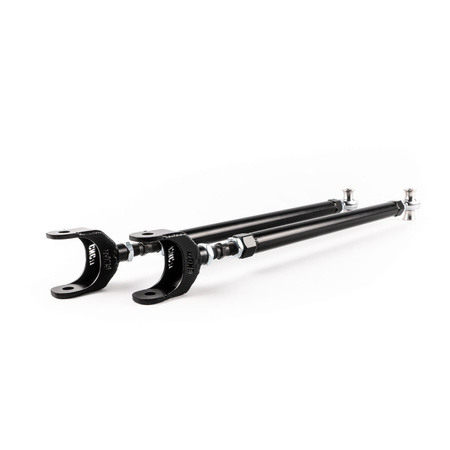

The control arm set includes:

• Adjustable rear upper control arm LEFT - 1 piece
• Adjustable rear upper control arm RIGHT - 1 piece
• Uniball M16 - 2 pcs.
• Uniball spacer set - 4 pcs.
• Roman bolt M16x1.5 - 2 pcs.
• Lock nuts for uniball and turnbuckle - 6 pcs.

The control arms were made of thick-walled structural steel tube and TIG-welded, which ensures very high structural strength. Individual components were made on CNC machines, which ensures high quality and repeatability.

The control arms are powder coated in black.

The weight of the entire set is approximately 3500 grams.
