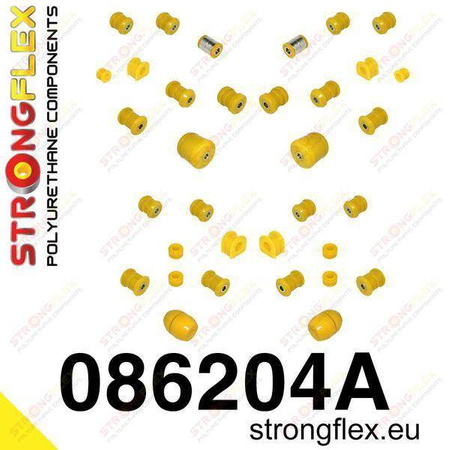

Full suspension bush kit SPORT

KIT ID: 086204A

Name: Full suspension bush kit SPORT

Fit:

Honda Prelude IV 92-96

Include:

2 x 081740A Front radius rod bush SPORT

2 x 081640A Front lower inner arm bush SPORT

2 x 081641A Front lower outer arm bush SPORT

8 x 081639A Upper arm bush SPORT

2 x 081713A Front anti roll bar bush SPORT

Diameters:

25,4mm

27,2mm

4 x 081743A Front anti roll bar link bush SPORT

2 x 081714A Rear anti roll bar bush SPORT

Diameters:

23mm

2 x 081741A Rear anti roll bar link bush SPORT
2 x 081742A Rear toe adjuster inner bush SPORT

2 x 081643A Rear lower inner arm bush SPORT

2 x 081646A Rear lower outer arm bush SPORT

2 x 081647A Rear trailing arm front bush SPORT

2 x 081648A Rear trailing arm rear bush SPORT

Pcs/prod: 34

Required/car: 1

Diagrams:

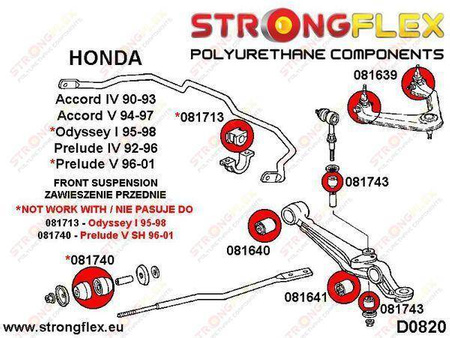

D0820

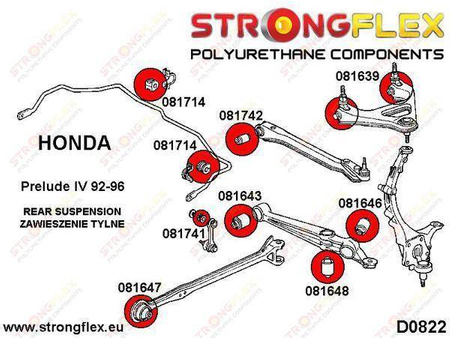

D0822

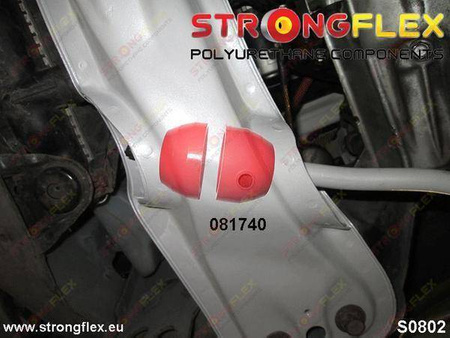

S0802

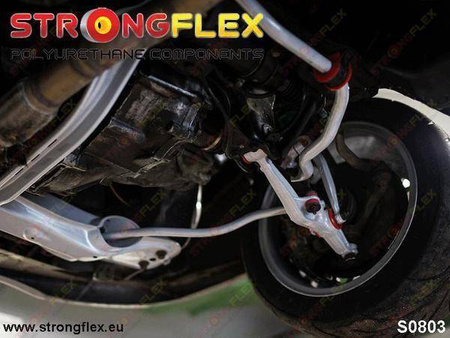

S0803

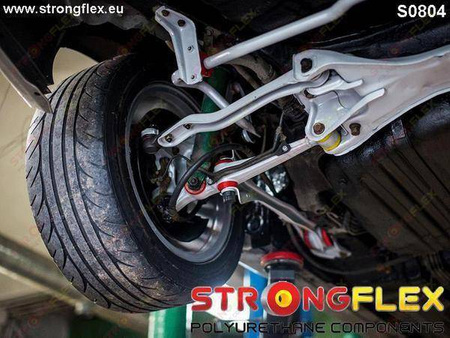

S0804

NOTE!

Measure Anti Roll Bush diameter before placing order.
If You have different diameter anti roll bar, please contact.

To install the polyurethane bushing 081647 you must burn the old rubber bush.
Do not remove the outer metal sleeve, it must be reused for this bushing!

Hardness: 90ShA

Material: POLYURETHANE (PUR/PU)

To every product we add grease!
