Full suspension bush kit

KIT ID: 086204B

Name: Full suspension bush kit

Fit:

Honda Prelude IV 92-96

Include:

2 x 081740B Front radius rod bush

2 x 081640B Front lower inner arm bush

2 x 081641B Front lower outer arm bush

8 x 081639B Upper arm bush

2 x 081713B Front anti roll bar bush

Diameters:

25,4mm

27,2mm

4 x 081743B Front anti roll bar link bush

2 x 081714B Rear anti roll bar bush

Diameters:

23mm

2 x 081741B Rear anti roll bar link bush
2 x 081742A Rear toe adjuster inner bush SPORT

2 x 081643A Rear lower inner arm bush SPORT

2 x 081646B Rear lower outer arm bush

2 x 081647B Rear trailing arm front bush

2 x 081648B Rear trailing arm rear bush

Pcs/prod: 34

Required/car: 1

Diagrams:

D0820

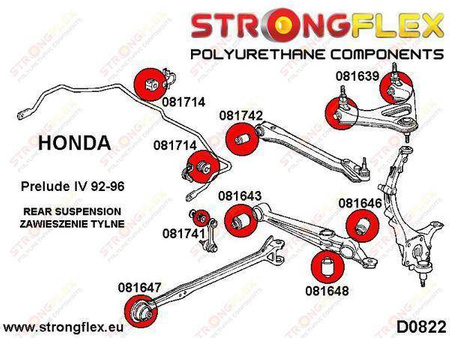

D0822

S0802

S0803

S0804

NOTE!

Measure Anti Roll Bush diameter before placing order.
If You have different diameter anti roll bar, please contact.

To install the polyurethane bushing 081647 you must burn the old rubber bush.
Do not remove the outer metal sleeve, it must be reused for this bushing!

Hardness: 80ShA

Material: POLYURETHANE (PUR/PU)

To every product we add grease!
